Disbursement Re-initiate transaction¶

Client can use disbursement / disbursement charge re-initiate transaction for retrying the transaction once again.

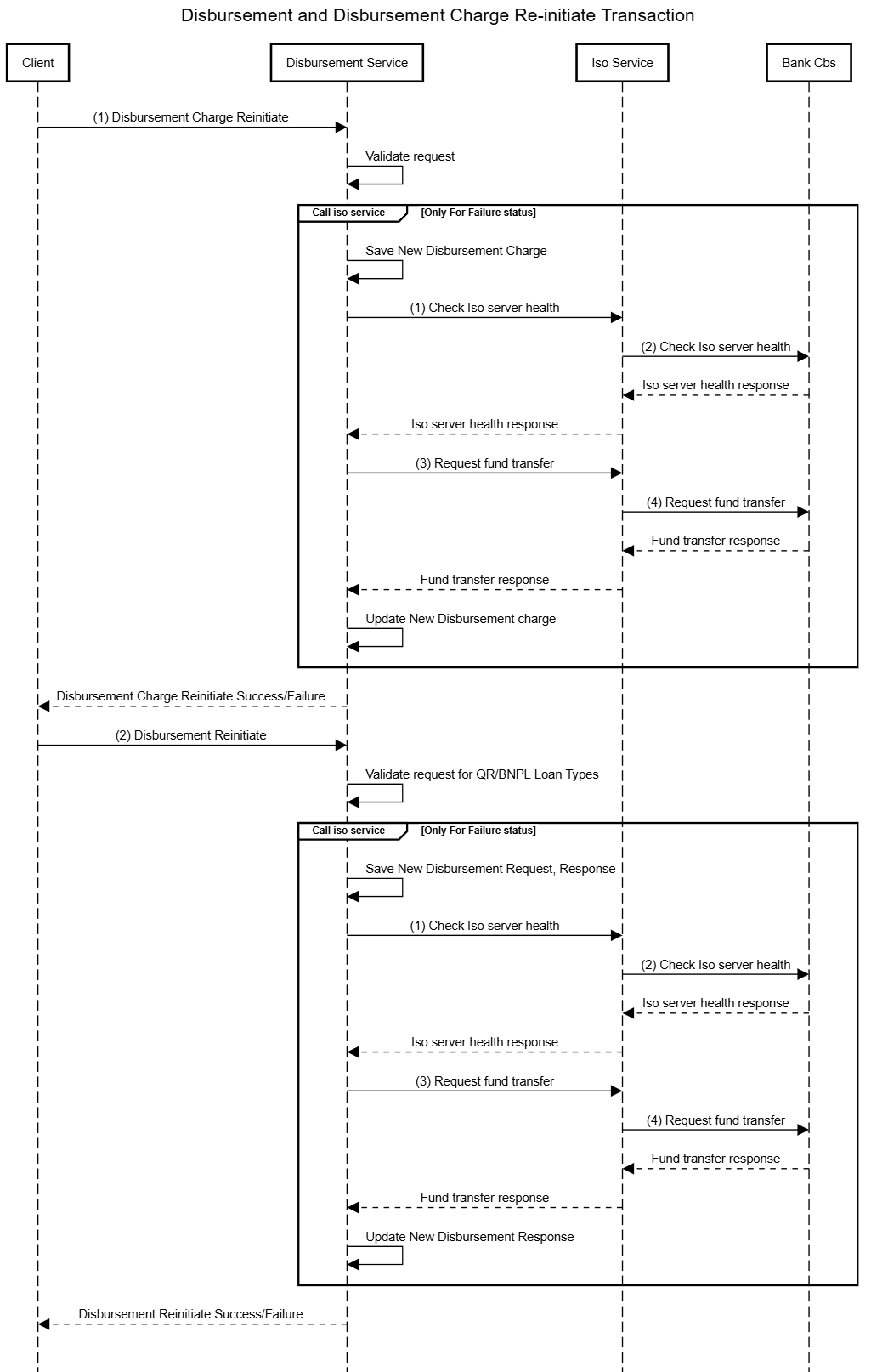

Disbursement Re-initiate UML

Disbursement Re-initiate UML Script¶

title  Disbursement and Disbursement Charge Re-initiate Transaction

Client -> Disbursement Service: (1) Disbursement Charge Reinitiate

Disbursement Service -> Disbursement Service: Validate request

group Call iso service [Only For Failure status]

    Disbursement Service -> Disbursement Service: Save New Disbursement Charge

    Disbursement Service -> Iso Service: (1) Check Iso server health

    Iso Service -> Bank Cbs : (2) Check Iso server health
    Bank Cbs --> Iso Service : Iso server health response

    Iso Service --> Disbursement Service: Iso server health response

    Disbursement Service -> Iso Service: (3) Request fund transfer

    Iso Service -> Bank Cbs : (4) Request fund transfer
    Bank Cbs --> Iso Service: Fund transfer response

    Iso Service --> Disbursement Service: Fund transfer response
    Disbursement Service -> Disbursement Service: Update New Disbursement charge

end

Disbursement Service --> Client: Disbursement Charge Reinitiate Success/Failure



Client -> Disbursement Service: (2) Disbursement Reinitiate

Disbursement Service -> Disbursement Service: Validate request for QR/BNPL Loan Types

group Call iso service [Only For Failure status]

    Disbursement Service -> Disbursement Service: Save New Disbursement Request, Response

    Disbursement Service -> Iso Service: (1) Check Iso server health

    Iso Service -> Bank Cbs : (2) Check Iso server health
    Bank Cbs --> Iso Service : Iso server health response

    Iso Service --> Disbursement Service: Iso server health response

    Disbursement Service -> Iso Service: (3) Request fund transfer

    Iso Service -> Bank Cbs : (4) Request fund transfer
    Bank Cbs --> Iso Service: Fund transfer response

    Iso Service --> Disbursement Service: Fund transfer response
    Disbursement Service -> Disbursement Service: Update New Disbursement Response

end

Disbursement Service --> Client: Disbursement Reinitiate Success/Failure

UML Diagram Step Descriptions¶

1. Disbursement Charge Re-initiate Request Initiation¶

Client → Disbursement Service: The client sends a disbursement charge re-initiate request to the Disbursement Service.

Validate request¶

Disbursement Service → Disbursement Service: The Disbursement Service validates the request.

Re-initiate Transaction (Only For Failure Status)¶

Save New Disbursement Charge¶

Disbursement Service → Disbursement Service: The Disbursement Service saves the new disbursement charge.

1. Check ISO Server Health Request to ISO Service¶

Disbursement Service → Iso Service: The Disbursement Service sends a request to the ISO Service to check the ISO server's health.

2. Check ISO Server Health Request to Bank CBS¶

Iso Service → Bank CBS: The ISO Service forwards the health check request to the Bank CBS.
Bank CBS → Iso Service: The Bank CBS responds with the health status of the ISO server.
Iso Service → Disbursement Service: The ISO Service sends the health check response back to the Disbursement Service.

3. Fund Transfer Request to ISO Service¶

Disbursement Service → Iso Service: The Disbursement Service initiates a fund transfer request for disbursement charge to the ISO Service.

4. Fund Transfer Request to Bank CBS¶

Iso Service → Bank CBS: The ISO Service forwards the fund transfer request to the Bank CBS.
Bank CBS → Iso Service: The Bank CBS responds with the result of the fund transfer.
Iso Service → Disbursement Service: The ISO Service sends the fund transfer response to the Disbursement Service.

Update Disbursement Charge¶

Disbursement Service → Disbursement Service: The Disbursement Service updates the new disbursement charge status.

Disbursement Charge Re-initiate Completion Response¶

Disbursement Service → Client: The Disbursement Service sends the final disbursement charge re-initiate response back to the client.

2. Disbursement Re-initiate Request Initiation¶

Client → Disbursement Service: The client sends a disbursement re-initiate request to the Disbursement Service.

Validate request¶

Disbursement Service → Disbursement Service: The Disbursement Service validates the request for QR/BNPL Loan Types.

Re-initiate Transaction (Only For Failure Status)¶

Save New Disbursement request and Disbursement response¶

Disbursement Service → Disbursement Service: The Disbursement Service saves the new Disbursement request and Disbursement response.

1. Check ISO Server Health Request to ISO Service¶

Disbursement Service → Iso Service: The Disbursement Service sends a request to the ISO Service to check the ISO server's health.

2. Check ISO Server Health Request to Bank CBS¶

Iso Service → Bank CBS: The ISO Service forwards the health check request to the Bank CBS.
Bank CBS → Iso Service: The Bank CBS responds with the health status of the ISO server.
Iso Service → Disbursement Service: The ISO Service sends the health check response back to the Disbursement Service.

3. Fund Transfer Request to ISO Service¶

Disbursement Service → Iso Service: The Disbursement Service initiates a fund transfer request for disbursement charge to the ISO Service.

4. Fund Transfer Request to Bank CBS¶

Iso Service → Bank CBS: The ISO Service forwards the fund transfer request to the Bank CBS.
Bank CBS → Iso Service: The Bank CBS responds with the result of the fund transfer.
Iso Service → Disbursement Service: The ISO Service sends the fund transfer response to the Disbursement Service.

Update Disbursement Response¶

Disbursement Service → Disbursement Service: The Disbursement Service updates the new disbursement response status.

Disbursement Re-initiate Completion Response¶

Disbursement Service → Client: The Disbursement Service sends the final disbursement re-initiate response back to the client.
